trev.bot/flash

TREV.BOT FLASH · WINDOWS

See the app

Every conversion follows the same five steps. The app checks your drive and the firmware files first, and nothing is written until you confirm.

  1. 1

    Check

    Connect your empty drive and check it. The app reads the model and firmware without changing anything, and shows the conversion it supports.

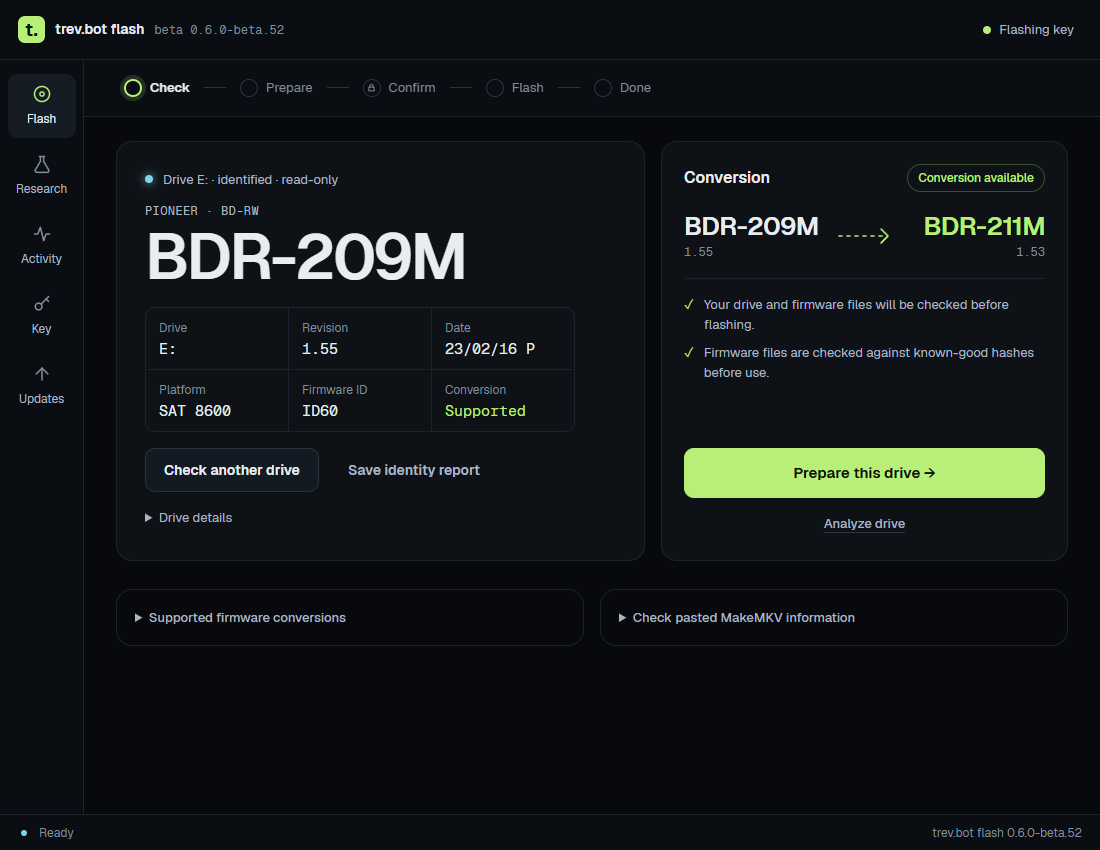

    The Check screen showing an identified drive and the available conversion
  2. 2

    Prepare

    The app downloads the firmware files, checks them against known-good hashes, and confirms your drive is ready. Nothing is written in this step.

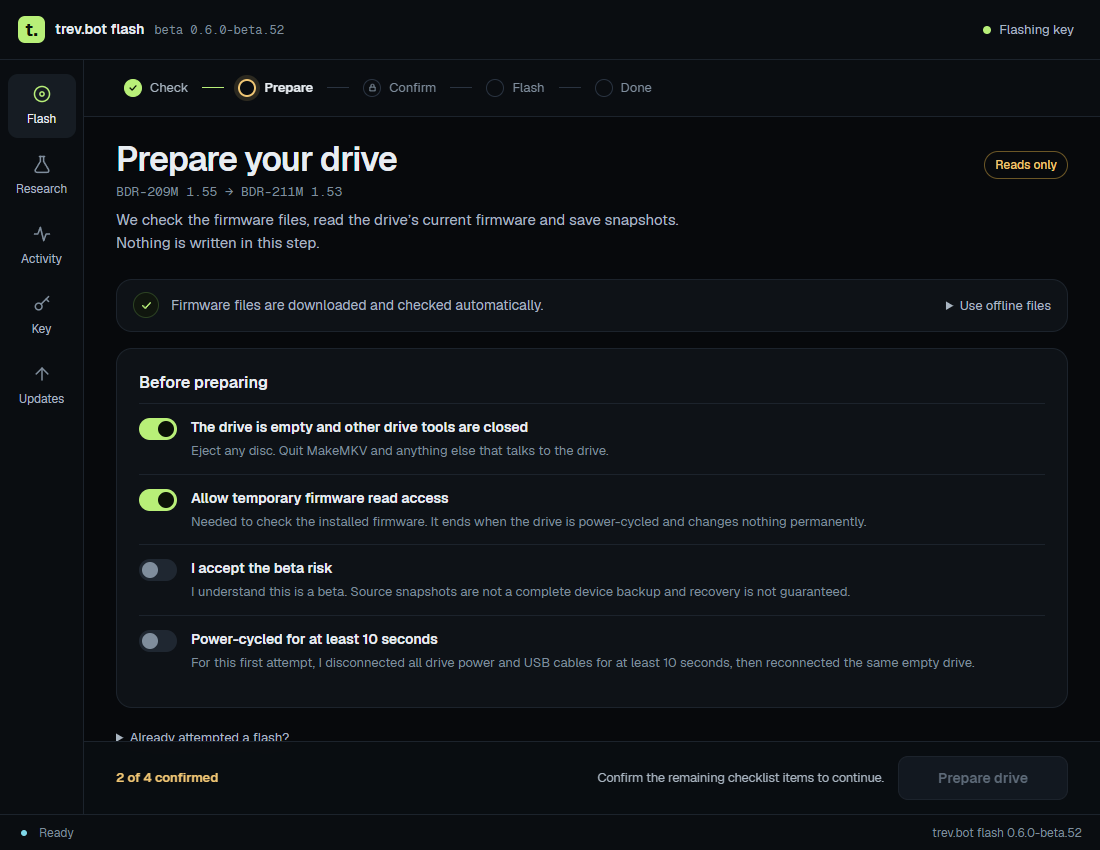

    The Prepare screen with its pre-flash checklist
  3. 3

    Confirm

    Review exactly what will change and type your drive’s serial to prove it’s the right one. Then press and hold to start. Nothing is written until you do.

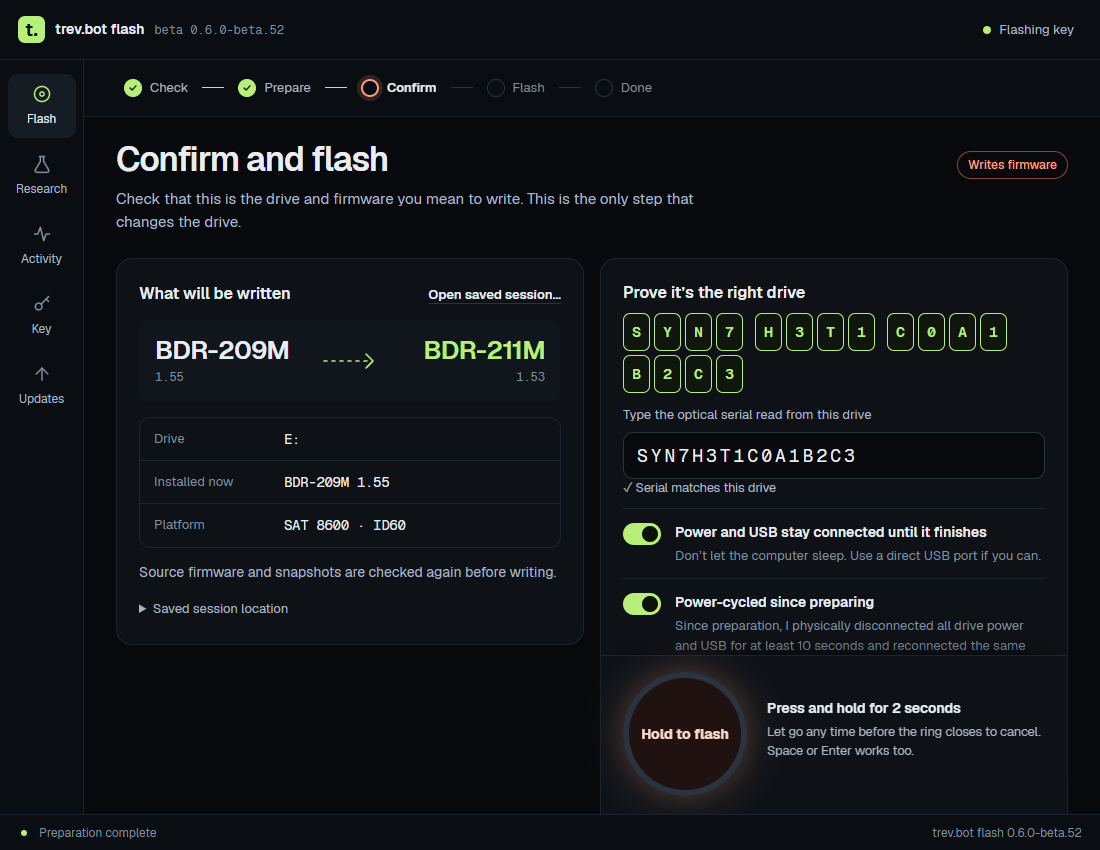

    The Confirm screen showing the change from the current firmware to the new one
  4. 4

    Flash

    The app writes the new firmware and checks the drive afterwards. It finishes on its own. Leave the drive, cable and power as they are.

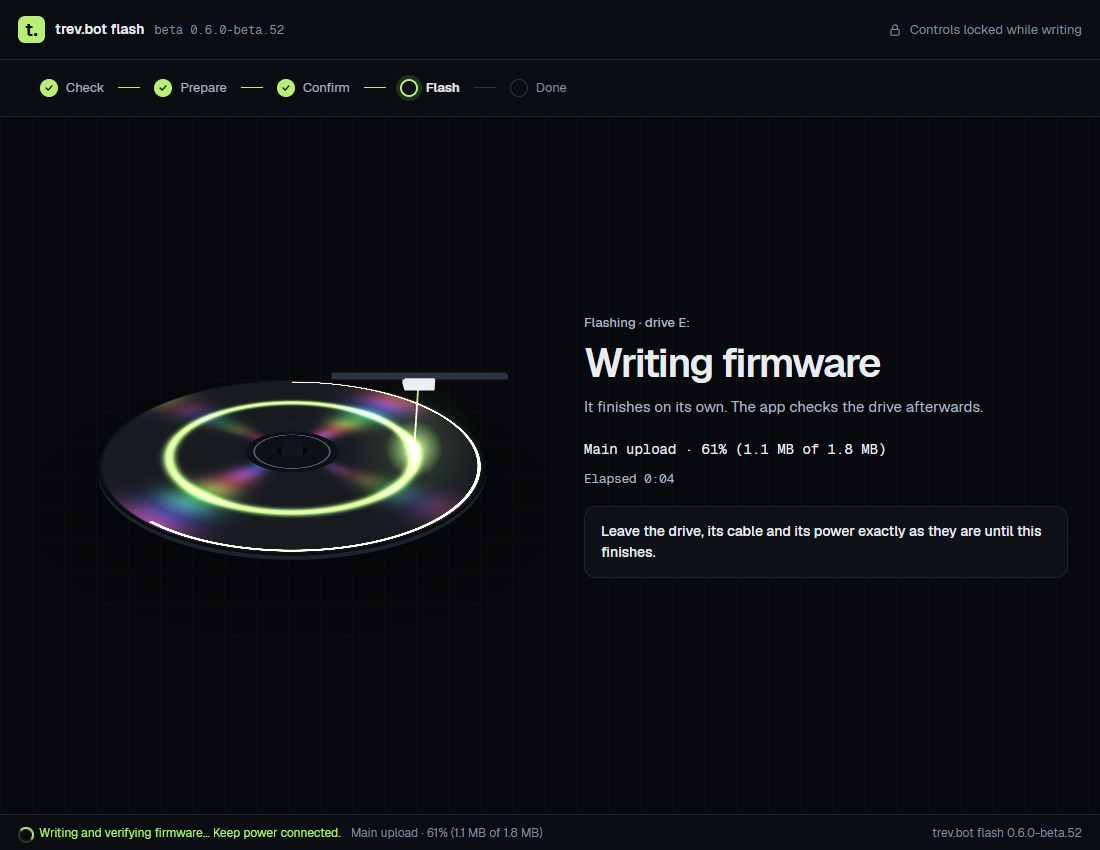

    The Flash screen while the new firmware is written
  5. 5

    Done

    Your drive now reports its new model and firmware. Save the support report if you’d like a record.

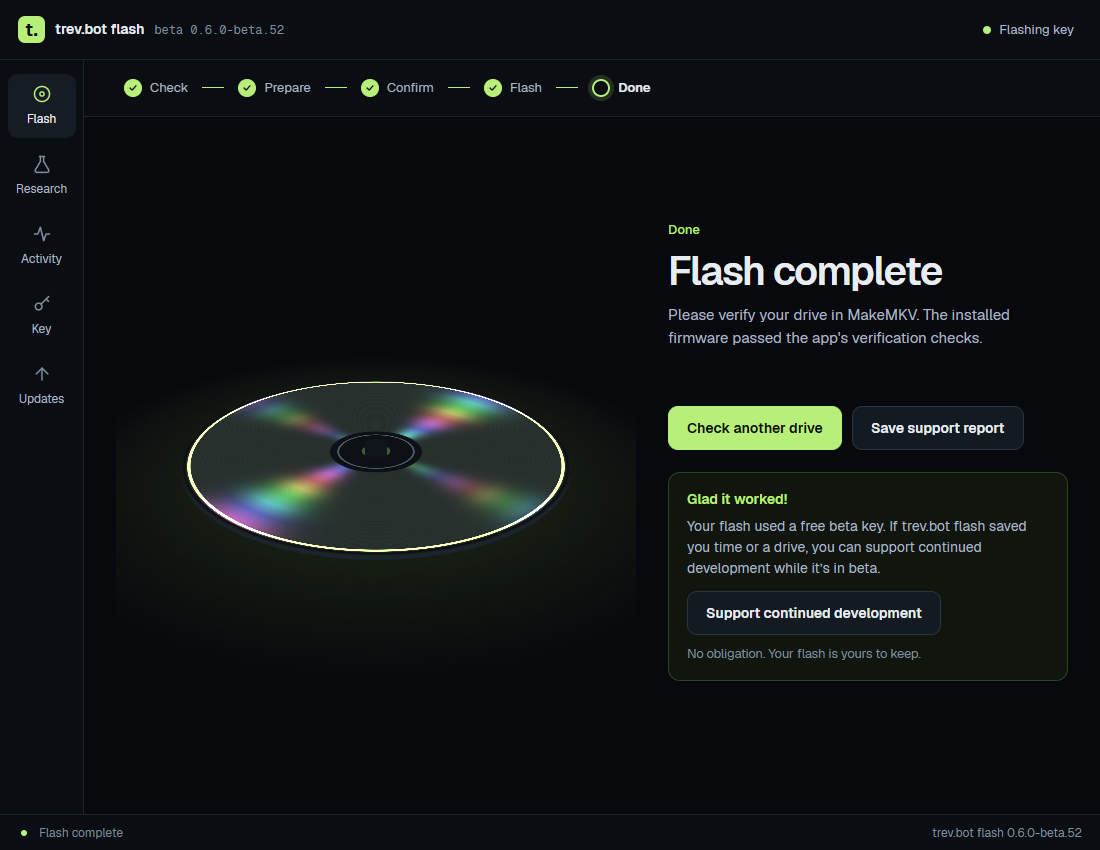

    The Done screen after a completed flash

Ready to flash your drive?

Download the app, enter your flash key, and check your drive. If it’s supported, the app walks you through the rest.

↓ Download trev.bot flashSee supported drives
